Products Introduction
HF F20 plant protection drone platform is an upgraded version of F10 4-axis 10L UAV agricultural drone. The main difference between the two is the exterior design and folding parts. We all know that the folding parts on agricultural drones are one of the most critical parts, and the folding parts of F20 are injection molded for a more stable and durable structure; the whole machine adopts a modular design, and modules such as batteries and water tanks can be plugged and replaced at any time, which makes it quicker to complete the actions of replenishing the liquid and replacing batteries during spraying operations.
The HF F20 spraying drone has the ability to cover a variety of uneven terrain, making it the perfect precision spraying tool. Crop drones greatly reduce the time and cost of manual spraying and hiring crop dusters. Smart agriculture is a worldwide trend and smart drones play an important role in this plan and our drones are ready to be deployed as agricultural crops.
Parameters
| Specifications | |
| Unfolded size | 1397mm*1397mm*765mm |
| Folded size | 775mm*765mm*777mm |
| Max diagonal wheelbase | 1810mm |
| Spray tank volume | 20L |
| Flight parameters | |
| Suggested configuration | Flight controller: V9 |
| Propulsion system: Hobbywing X9 Plus | |
| Battery: 14S 28000mAh | |
| Total weight | 19 kg (Excluding battery) |
| Max takeoff weight | 49 kg (at sea level) |
| Hovering time | 25min (28000mAh & takeoff weight of 29 kg) |
| 13min (28000mAh & takeoff weight of 49 kg) | |
| Max spray width | 6-8 m (4 nozzles,at a height of 1.5-3m above crops) |

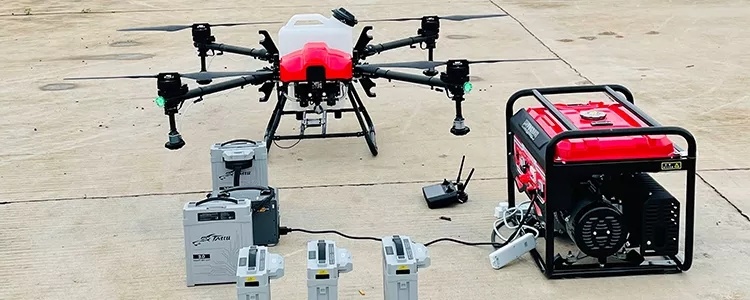

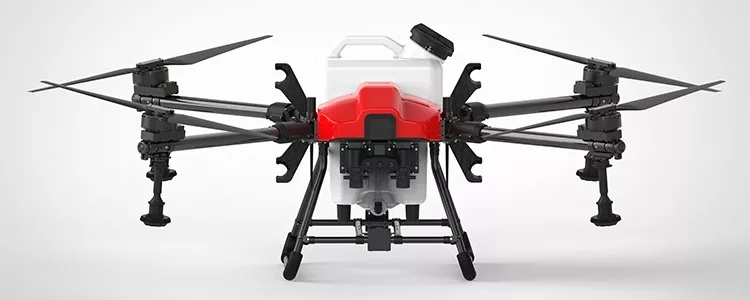

Product Real Shot

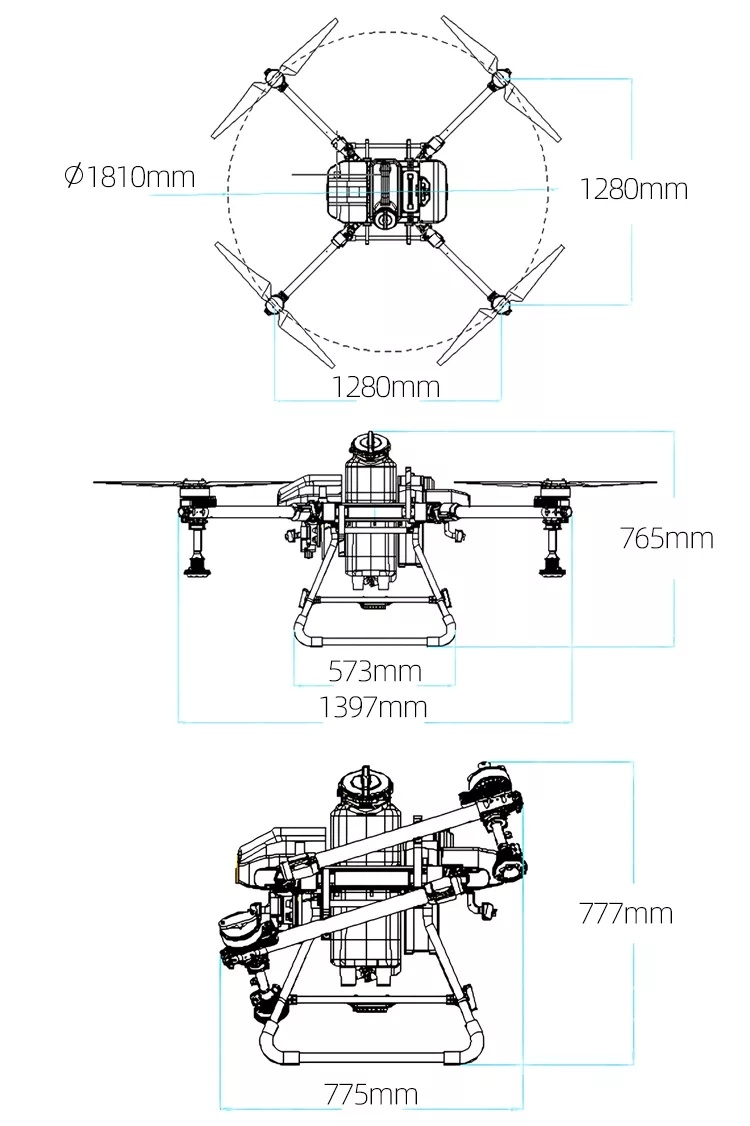

Three-dimensional Dimensions

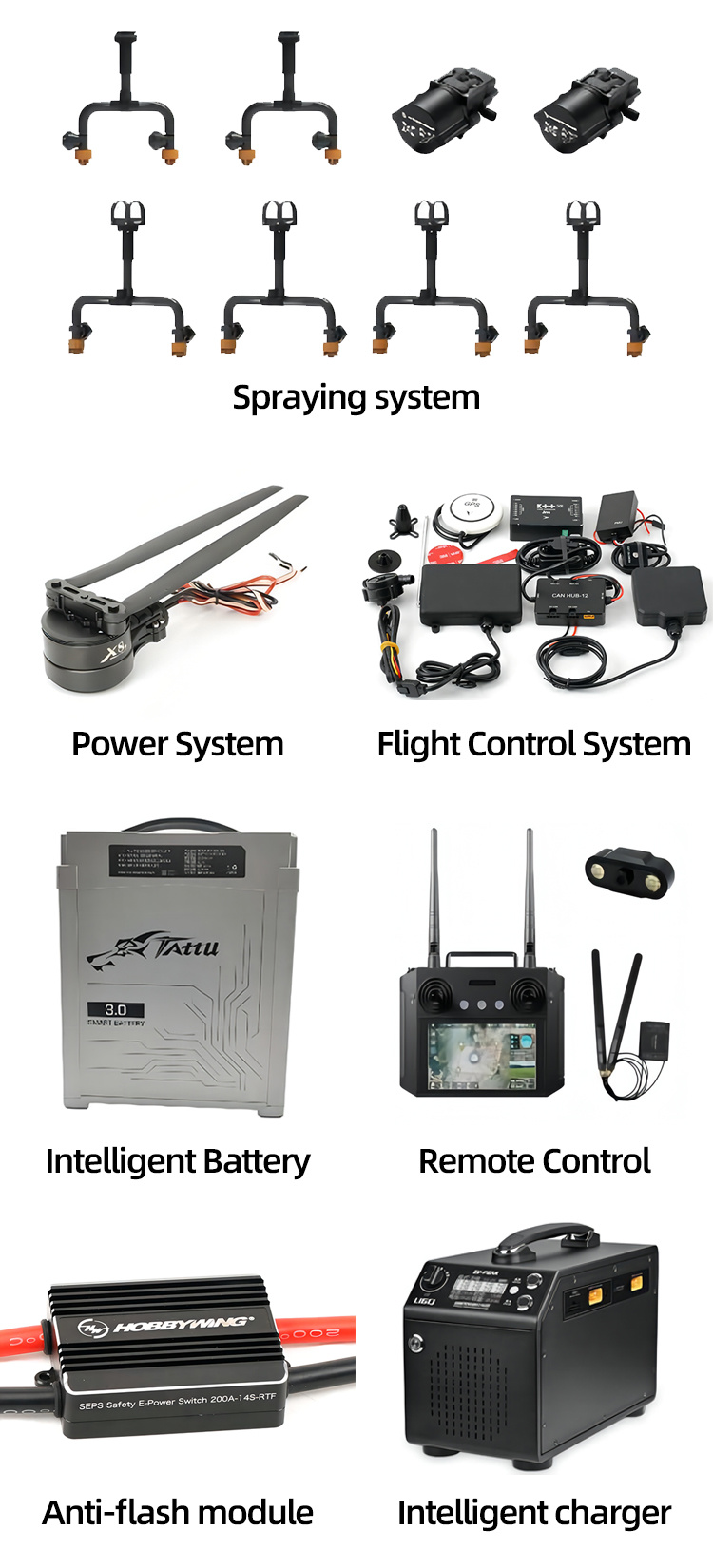

Accessory List
Spraying System
Power System
Anti-flash Module
Flight Control System
Remote Control
Intelligent Battery
Intelligent Charger
FAQ
1. What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2. What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3. How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4. What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5. What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
-
