2022 Latest Design Best Drone For Farm Security - Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for Crops – Hongfei Detail:

Product Description

Product Description

Material Aerospace carbon fiber + Aerospace aluminum
Size 3920mm*3920mm*970mm
Folded size 1050mm*900mm*1990mm
Package size 2200mm*1100mm*960mm
Weight 51KG
Maximum takeoff weight 147KG
Payload 72L/75KG
Flight altitude ≤ 20m
Flight speed 1-10m/s
Spray rate 8-15L/min
Spraying efficiency 28-30ha/hour
Spraying width 8-15m
Droplet size 110-400μm

HBR T72 is a super large capacity agricultural drone, there is hardly any drone of the same type above the market.It can spray 28-30 hectares of fields per hour with very high efficiency, uses smart batteries, and charges quickly. Perfect for large areas of farmland or fruit forests.The machine is packed in an airline box, which can ensure that the machine will not be damaged during the transportation.Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsFeatures

A new generation of fly-defense experts:

1. From top to bottom, 360 degrees without dead angle.

2. Adopt high-quality flight control, intelligent battery, the highest grade 7075 aviation aluminum structure, to ensure stable flight and safe operation.

3. GPS positioning function, autonomous flight function, terrain following function.

4. Exported to many countries and regions, high stability and durability can bring you more revenue.





StructuralDesign

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsThe right eight-axis design. HBR T72 has an effective spray width of more than 15 meters. It is the best in its class. The fuselage is made of carbon fiber materials and integrated design to ensure structural strength. The arm can be folded up at 90 degrees, saving 50% of the transportation volume and facilitating transfer and transportation.

Beginning in 2017, the large load 8-axis structure has been verified by the market for five years and is stable and durable.

The HBR T72 platform can carry a maximum of 75KG for operation. Realize fast spraying.





Radar System

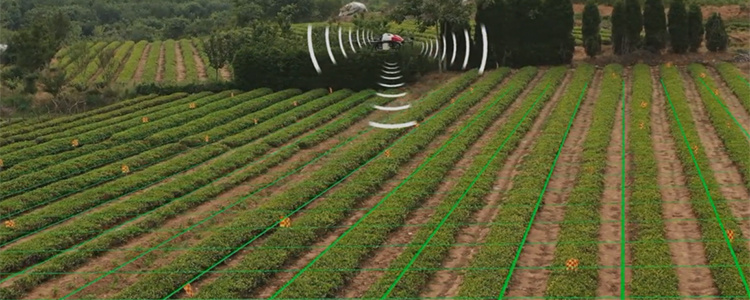

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsTerrain follow radar:

This radar launch high precision centimeter level wave and early precept the terrain topography. Users can adjust the following sensitivity according to different crops and terrain topography to satisfy the demand of terrain following flight, ensure flight safety and well-distribution spraying.

Front and rear obstacle avoidance radar:

High precision digital radar wave detect the surroundings and circumvent obstacles automatically when flying. Operation safety is highly guaranteed. Because of resistance to dust and water, the radar can be adapted to most environment.





Intelligent Flight Control System

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsThe system integrates high-precision inertial and satellite navigation sensors, the sensor data is preprocessed, drift compensation and data fusion in the full temperature range,obtain real-time flight attitude, position coordinates, working status and other parameters to complete the high-precision attitude and route control of the multi-rotor UAS platform.





Route Planning

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsDrone route planning is divided into three modes.Plot mode, Edge-sweeping modeand Fruittreemode.

·Plot mode is a commonly used planning mode. 128 waypoints can be added.Freely set the altitude, speed, obstacle avoidance mode, and flight path.Automatically upload to the cloud, Convenient for the next spray planning.

·Edge-sweeping mode, the drone sprays the boundary of the planned area.Arbitrarily adjust the number of laps for sweeping flight operations.

·Fruittreemode.Developed for spraying fruit trees.The drone can hover, spin and hover at a certain point. Freely choose waypoint/route mode for operation. Set fixed points or slopes to effectively prevent accidents.

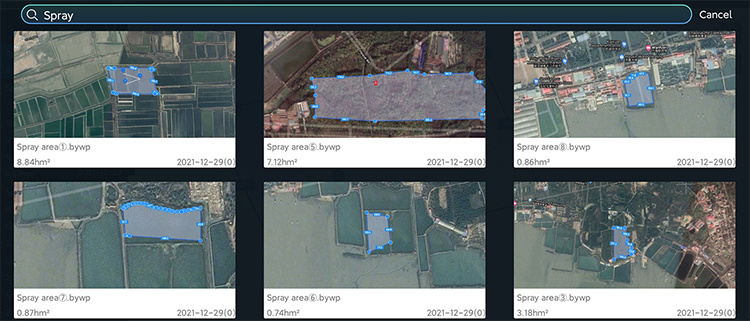

Plot Area Sharing

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsUsers can share plots.The plant protection team downloads the plots from the cloud,edits and delete plots. Share the planned plots through your account. You can check the planned plots uploaded to the cloud by customers within five kilometers. Provide plot search function, enter keywords in the search box, you can search and locate plots that meet the search criteria and display pictures.





Intelligent Power System

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for CropsWonderful combination of 14S 42000mAh Lithium-polymer battery and the four channel high voltage smart charger ensures the stability and safety of charging.High charging effiency,rapidly charge four smart battery concurrently.

Battery voltage 60.9V (fully charged)
Battery life 1000 cycles
Charging time 30-40 minutes

Company Profile

Manufacturer Specializing in High Quality Production of Agricultural Uav Sprayers 72 Liter Drone for Crops

FAQ

1.What is the best price for your product?

We will quote based on the quantity of your order, the higher the quantity the higher the discount.



2.What is the minimum order quantity?

Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.



3.How long is the delivery time of the products?

According to the production order dispatch situation, generally 7-20 days.



4.What is your payment method?

Wire transfer, 50% deposit before production, 50% balance before delivery.



5.What is your warranty time? What is the warranty?

General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
