Cheap price Agricultural Drone Manufacturers - China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width – Hongfei

Short Description:

Product Detail

Product Tags

Feedback (2)

We constantly continually give you essentially the most conscientious client provider, plus the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for Cheap Thermal Camera Drone , Cheapest Drone With Gps , Business Plan For Drone Company , Any needs from you'll be paid out with our best notice!

Cheap price Agricultural Drone Manufacturers - China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width – Hongfei Detail:

Basic Info.

Model NO.

HTU T30

Power Supply

Electric

Material

Frame: Aviation Aluminum

Transport Package

1100mm*1100mm*930mm

Specification

2515*1650*788mm(Unfoldable)

Trademark

Haoyi

Origin

Shanghai

Product Description

Product Parameters

HIGH COST PERFORMANCE – PLANT PROTECTIONSOLUTION

·High Efficiency ·Easy to operate ·High Quality ·Stable

·All-aviation aluminum main frame, light weight, high strength, impact resistance.

·Module-level IP67 protection, no fear of water, dust. Corrosion resistance.

·It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer.

·Easy to fold, can be installed in common agricultural vehicles, easy to transfer.

·Modular design, most parts can be replaced by themselves. China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

HTU T30Product Parameters

Basic Parameters		Flight Parameters
Outline dimension	25151650788mm(Unfoldable)	Hovering time	>20min(No load)
	10401010788mm(Foldable)		>8min(Full load)
Effective spray (depending on the crop)	6~8m	Maximum flight speed	8m/s(GPS mode)
Whole machine weight (including battery)	40.6kg	Job height	1.5~3m
Maximum effective takeoff weight (near sea level)	77.8kg	Positioning accuracy (good GNSS signal, RTK enabled)	Horizontal ± 10cm Vertical ± 10cm
Battery	30000mAh, 51.8V	Avoidance perception range	1~40m Avoidance front and rear according to the flight direction
Spraying Parameters		Sowing Parameters
Medicine box capacity	30L	Material box capacity	45L
Nozzle type	High pressure Fan nozzle Support switching centrifugal nozzle	Feeding method	Roller quantification
Nozzle model	11015VS	Bulk material method	High pressure air
Number of nozzles	12	Feeding speed	50L/min
Maximum flow rate	8.1L/min	Broadcasting	5~7m
Spray	6~8m

Product Description

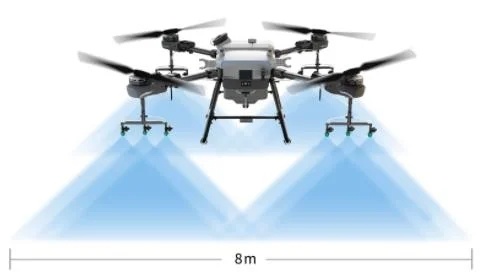

Spraying

Equipped with 30L oversized medicine box

·The operating efficiency is increased to 15 hectares/hour.

·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.

·The full-range continuous level gauge shows the true liquid level.

·120ha/day, 170 times more artificial·Safer without contact·Uniform spraying,Provincial medicine·Disinfection in isolation area

·0.7ha/day ·Pesticide injury·Re-spray, spray leakage·Manual operation in isolation area is easy to be infected

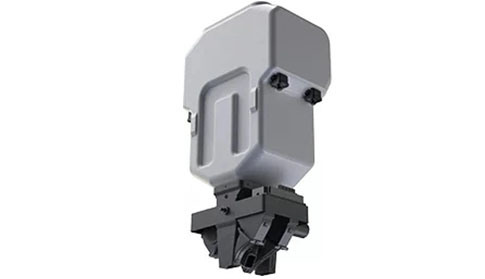

Spreading

Equipped with 45L bucket, large load

·8m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.

·Full anti-corrosion, washable, no blockage.

·Measuring material weight, real time, anti-overweight.

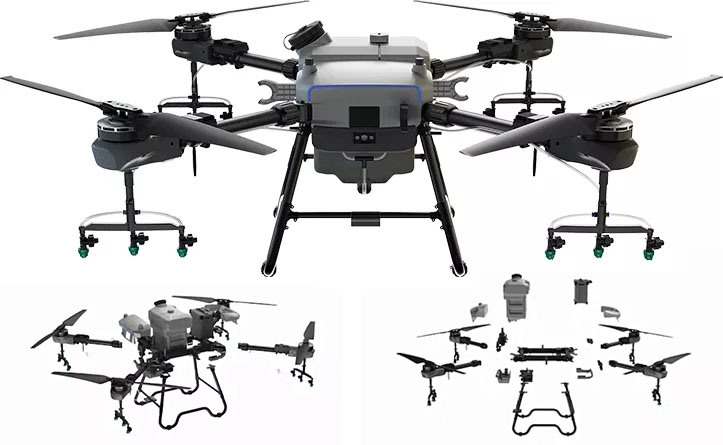

Modular Design

China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width ·Full aviation aluminum main frame, reduce weight while high strength, impact resistance.

·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion. China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

·High toughness, foldable, three-layer filter

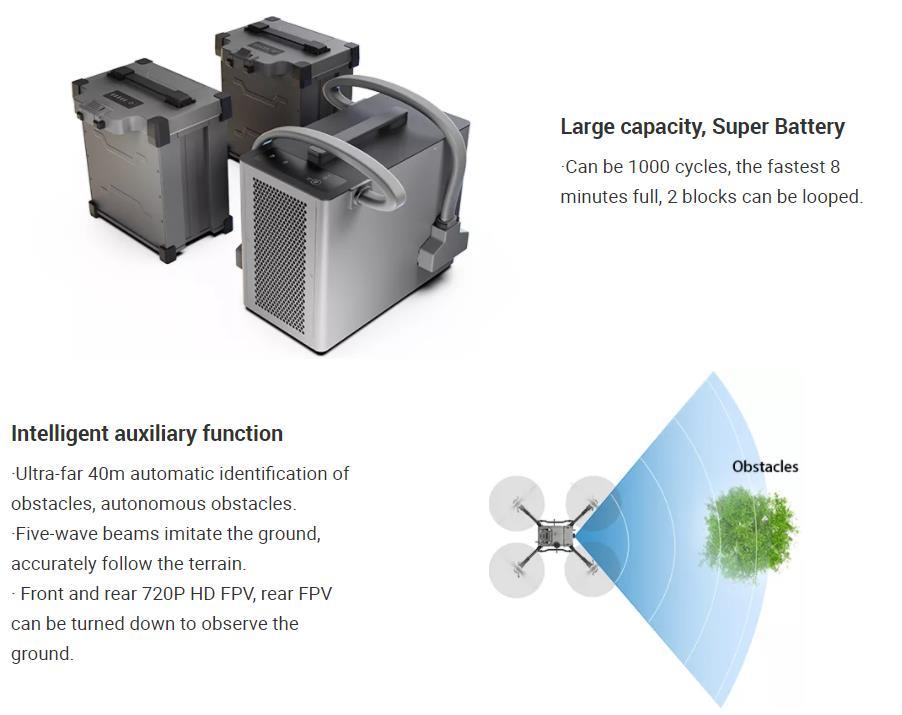

·Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.·A variety of enclosure methods: Handheldmappingdevice, airplane dot, Map dot.·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.·Fully automatic generation of sweeping routes to prevent leakage.·Equipped with searchlights and help lights, it can also operate safely at night. China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

·Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.

Company Profile

Why Choose Us

1> Our service network is sufficient to guarantee the needs of our customers, a perfect and continuous solution can guarantee the needs of most customers.

2> One-stop sourcing provides you with a perfect supply chain of plant protection products, saving your purchasing cost and time cost with high efficiency and quality. You can also enjoy our long-term technical consulting services.3> We support OEM/ODM service to meet your special needs.4> Price, information, quality, program, after-sales, a full range of standardized support services for our agents to win more opportunities and competitiveness, making cooperation so easy and efficient.5> Based on the absolute advantage of factory network, we have long-term cooperation with logistics, which can make the productsdelivered faster and more efficiently.6> We will provide the best after-sales service for our customers. You are welcome to visit our factory and receive after-sales service training. No matter what, we will try our best to meet your requirements.7> We can provide the certifications you need, or we can help you get through your official certifications.

Haojing International Trade Co., Ltd.

Haojing International Trade Co., Ltd. is a well-known manufacturer in China for many years. Our factory was established in 2003.

Our products include UAV, UGV,UAV parts, etc. Our products have passed ISO certification and CE certification and patent certificates.

Our company iscommitted to providing global customers with high-quality mechanical and electrical products and complete sets of solutions, andproviding one-stop procurement services.We conforms to market demand, takes technological innovation, customer first, and good quality as our concepts, based on ouractive actions and hard work, opened overseas markets successfully.At present, we have an extensive sales network with customers all over the world, including the United States, Mexico, Russia,Portugal, Turkey, Pakistan, South Korea, Japan and Indonesia. Our products have covered distributors and agents in all European countries.Our main manufacturing plant is located in Shanghai, China, with a stable and highly skilled labor force. We are willing to provide you with unique products that are not only attractive, but also practical and competitive.We know for a company to develop an enviable reputation,it needs to do much efforts so that favor to the needs of differentclients. We are in trying its best effort to play a pivotal role in this field. Waiting for more cooperation partners to join us.

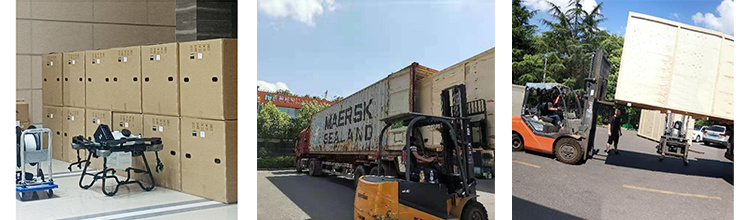

Packaging & Shipping

China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

FAQ

1. Who are we? We are an integrated factory and trading company, with our own factory production and 65 CNC machining centers. Our customers are all over the world, and we have expanded many categories according to their needs. 2. How can we guarantee quality? We have a special quality inspection department before we leave the factory, and of course it is very important that we will strictly control the quality of each production process throughout the whole production process, so our products can reach a 99.5% pass rate. 3. What can you buy from us? Professionaldrones, unmanned vehiclesand other devices with high quality. 4. Why should you buy from us not from other suppliers? We have 20years of production, R&D and sales experience, andwe have a professional after sales team to support you. 5. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card;
