Chinese Professional Cheap Fpv Drone Kit - Agricultural Farming Pesticide Sprayer 16L 20L 30L Fumigation Agricultural Drone Price – Hongfei Detail:
Product Description
Product Description
T16 | T20 | T30 | |
Diagonal Wheelbase | 1700mm | 2000mm | |
Size (Folded) | 870*870*750mm | 1000*1000*750mm | |
Size (Spreaded) | 2350*2350*750mm | 2000*2000*750mm | |
Weight | 16kg | 20kg | 30kg |
Loading | 16kg | 20kg | 30kg |
Spray Width | 3-5m | 3-6m | |
Flight Control Systems | Microgram V7-AG | ||
Dynamic System | Hobbywing X8 | Hobbywing X9 | |
Spraying System | Pressure Spray | ||
Spraying Flow | 1.5-4L/min | 1.5-3L/min | 1.5-5L/min |
Operational | 6-12hectares/hour | 8-12hectares/hour | 12-20hectares/hour |
Daily efficiency (6hours) | 20-40hectares | 20-60hectares | 20-60hectares |
Power Battery | 12S 22000mAh | 14S 20000mAh | 14S 28000mAh |
Recharge Cycles | 300-500times |
The HGS series agricultural drone, which integrates intelligent sowing and precise spraying, can flexibly carry different capacity operation boxes and easily and efficiently carry out sowing, spreading fertilizer, application and feeding in all terrain conditions through cell phone or intelligent remote control, providing every user with intelligent, precise, efficient and flexible production solutions.The new HGS series agricultural drone allows every user, through low production costs, to create high efficiency.Features
1. Android cell phone ground station, using simple/PC ground station, the whole voice broadcast.
2. Support one key take-off and landing, no manual intervention, improve safety.
3. Breakpoint spraying, no medicine, low power return.
4. Dosage detection, can be set without drugs automatically record break point return.
5. Power detection, can be set to low power automatically record the break point return.
6. Microwave altitude radar, stable altitude, support ground-like flight.
7. Fence function, log storage function, landing lock function, no-fly zone function.
8. Vibration protection, star loss protection, drug break protection.
9. Motor sequence detection function, direction detection function.
10. Double pump mode.
Whole Machine Design
The modular waterproof body folding design, large-diameter 16-liter rotomolding process anti-vibration water tank, the main body of the body using aluminum alloy integrated plastic into.Shell using ABS injection molding, the surface using piano baking paint process, wear-resistant and easy to clean.
Protection Grade
Protection class IP67, waterproof and dustproof, support full body wash.
Accurate Obstacle Avoidance
Front and rear dual FPV cameras, spherical omnidirectional obstacle avoidance radar to provide security escort, real-time perception of three-dimensional environment, omnidirectional obstacle avoidance.
Product Detail
·8 groups of solenoid valves with full frequency control, providing a strong flow rate of 1L/min.
·4 nozzles full-coverage spraying (can be customized), spraying width up to 4-6 meters.
·New intelligent liquid level meter, accurate prediction of the change of drug point, significantly improve the efficiency of the battery change.

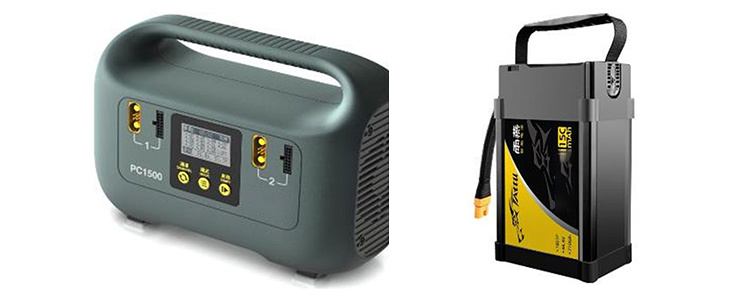

Fast Charging
Inverter charging station, generator and charger in one, 30 minutes fast charging.
Battery weight | 6.3KG |
Battery specification | 12S 22000mah |
Charging Time | 0.5-1 hour |
Recharge Cycles | 300-500 times |
Standard Configuration
Optional Configuration
Company Profile
FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
