HZH Y50 DELIVERY DRONE DETAILS
HZH Y50 is a 4-axis, 8-wing transport drone with a maximum load of 60kg and a 44-minute endurance.
Based on the folding design under the medium-sized “X” upper and lower wing structure, it is compact in size, heavy in weight and flexible in flight. The solid-state lithium battery power supply mode provides Maximum 44min of no-load endurance.
Application scenarios: emergency rescue, air transport, firefighting and firefighting, material supply and other fields.
HZH Y50 DELIVERY DRONE FEATURES
1. The fuselage adopts integrated carbon fiber design to ensure the rigid and high-strength product quality of the drone.
2. Has excellent load capacity, capable of transporting up to 50kg.
3. Long endurance, no-load hovering time of more than 40 minutes (optional two 52,000mAh batteries to achieve 1 hour of endurance).
HZH Y50 DELIVERY DRONE PARAMETERS
Material | Carbon fiber + Aviation aluminum |
Wheelbase | 1800mm |
Size | 1900mm*1900mm*730mm |
Folded size | 800mm*800mm*730mm |
Weight of empty machine | 23.2KG |
Maximum load weight | 60KG |
Endurance | ≥ 44 minutes unladen |
Wind resistance level | 9 |
Protection level | IP56 |
Cruising speed | 0-20m/s |
Operating voltage | 61.6V |
Battery capacity | 28000mAh*4 |
Flight altitude | ≥ 5000m |
Operating temperature | -30°to70° |
HZH Y50 DELIVERY DRONE DESIGN
• Four-axis design, foldable fuselage, can carry 50 kg of weight, single 5 seconds to unfold or stow, 10 seconds to take off, flexible and highly maneuverable.
• Dual antenna dual-mode RTK accurate positioning up to centimeter level, with anti-countermeasures weapons interference capability.
• Equipped with high-precision obstacle avoidance system (millimeter wave radar), in the complex urban environment, can monitor obstacles and avoid in real time (can identify the diameter of ≥ 2.5cm).
• Industrial-grade flight control, multiple protection, stable and reliable flight.
• Remote real-time synchronization of data, images, site conditions, command center unified scheduling, management of UAV execution tasks.
HZH Y50 DELIVERY DRONE APPLICATION
• HZH Y50 large load UAV, through the communication relay function, the disaster area and the site command center, long-distance command center to get in touch with the latest disaster information in a timely and quick manner in order to formulate rescue strategies and transport relief supplies.
INTELLIGENT CONTROL OF HZH Y50 DELIVERY DRONE

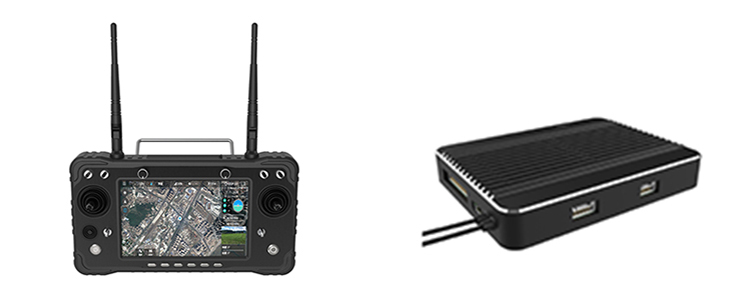

H12 Series Digital Fax Remote Control
H12 series digital map remote control adopts new surging processor, equipped with Android embedded system, using advanced SDR technology and super protocol stack to make image transmission clearer, lower latency, longer distance and stronger anti-interference. clearer, lower latency, longer distance and stronger anti-interference.
The H12 series remote control is equipped with dual-axis camera, supporting 1080P digital high-definition picture transmission; thanks to the product’s dual antenna design, the signals complement each other, and with the advanced frequency hopping algorithm, the communication capability of weak signals is greatly increased.
H12 remote control parameters | |
Operating voltage | 4.2V |
Frequency band | 2.400-2.483GHZ |
Size | 272mm*183mm*94mm |
Weight | 0.53KG |
Endurance | 6-20 hours |
Number of channels | 12 |
RF power | 20DB@CE/23DB@FCC |
Frequency hopping | New FHSS FM |
Battery | 10000mAh |
Communication distance | 10km |
Charging interface | TYPE-C |
R16 receiver parameters | |
Operating voltage | 7.2-72V |
Size | 76mm*59mm*11mm |
Weight | 0.09KG |
Number of channels | 16 |
RF power | 20DB@CE/23DB@FCC |
• 1080P digital HD image transmission: H12 series remote control with MIPI camera to achieve stable transmission of 1080P real-time digital HD video.
• Ultra-long transmission distance: H12 map-digital integrated link transmission up to 10km.
• Waterproof and dustproof design: Products in the body, control switches, the peripheral interfaces are made waterproof, dust-proof protection measures.
• Industrial-grade equipment protection: Weather silicone, frosted rubber, stainless steel, aviation aluminum alloy materials are used to develop, to ensure the safety of equipment.
• HD highlight display: 5.5-inch IPS display. 2000nits high brightness display, 1920 × 1200 resolution, large screen-to-body ratio.
• High performance lithium battery: Using high energy density lithium-ion battery, 18W fast charging, full charge can work for 6 ~ 20 hours.
Ground Station App
The ground station is heavily optimized based on QGC, with a better interactive interface and a larger map view available for control, dramatically improving the efficiency of UAVs performing tasks in specialized fields.
HZH Y50 DELIVERY DRONE REAL SHOT
STANDARD CONFIGURATION PODS OF HZH Y50 DELIVERY DRONE
Three-axis pods + crosshair aiming, dynamic monitoring, fine and smooth picture quality.
Operating voltage | 12-25V |
Maximum power | 6W |
Size | 96mm*79mm*120mm |
Pixel | 12 million pixels |
Lens focal length | 14x zoom |
Minimum focusing distance | 10mm |
Rotatable range | tilt 100 degrees |
INTELLIGENT CHARGING OF HZH Y50 DELIVERY DRONE
Charging power | 2500W |
Charging current | 25A |
Charging mode | Precise charging, fast charging, battery maintenance |
Protection function | Leakage protection, high temperature protection |
Battery capacity | 28000mAh |
Battery voltage | 61.6V (4.4V/monolithic) |
OPTIONAL CONFIGURATION OF HZH Y50 DELIVERY DRONE
For specific industries and scenarios such as electric power, firefighting, police, etc., carrying specific equipment to achieve the corresponding functions.
FAQ
1. Can we print our logo on the drone?
Yes, of course.Accept batch custom logo or enclosure colors at your choice.
2. Can we place a trial order for some tests?
Of course, we hope that more new customers can place orders to facilitate customers to do some optional tests, and if satisfied, you can order in batches.
3. What are your basic configurations?
The whole machine plus the battery, the specific configuration according to the customer requirements.
4. How should the battery be activated?
The new battery needs to be activated when in use, and the charging current cannot be too high for the first few times.Slow charge the battery at the first 4 to 5 times.
5. How to unlock and lock the motor?
See the operation manual of each product.
