High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for Sale

Short Description:

After-sales Service: Online Service
Warranty: 1 Year. Core Components: 3 Months
Installation: Module
Liquid Contained: Medicine, Disinfector
Spraying Shape: Sector
Volume: 10L
Samples:
US$ 4590/Piece 1 Piece(Min.Order)

| Request Sample

Customization:


Product Detail

Product Tags

Basic Info.

Model NO.
HTU T10

Power Supply
Electric

Material
Aerospace Aluminum + Carbon Fiber

Type
Drone

Unfoldable Size
1152mm*1152mm*630mm

Foldable Size
666.4mm*666.4mm*630mm

Spray Width
3.0~5.5m

Maximum Flow
3.6L/Min

Medicine Box Capacity
10L

Operational Efficiency
5.4ha/H

Weight
12.25kg

Power Battery
12s 14000mAh

Operation Height
1.5m~3.5m

Max. Flight Speed
10m/S (GPS Mode)

Accurate Altitude Hold of Radar
0.02m

Altitude Hold Range
1~10m

Obstacle Avoidance Detect Range
2~12m

Transport Package
Cardboard Box

Specification
1152mm*1152mm*630mm

Trademark
HongFei

Origin
China

Product Description

Product Description

Dimension 1152*1152*630mm (Unfoldable) Hovering time >20min (No load)
666.4*666.4*630mm (Foldable) >10min (Full load)
Spray width (depends on the crop) 3.0~5.5m Operation height 1.5m~3.5m
Maximum flow 3.6L/min Max. flight speed 10m/s (GPS mode)
Medicine box capacity 10L Hovering accuracy Horizontal/Vertical±10cm (RTK)
Operational efficiency 5.4ha/h (GNSS signal good) Vertical±0.1m (Radar)
Weight 12.25kg Accurate altitude hold of radar 0.02m
Power battery 12S 14000mAh Altitude hold range 1~10m

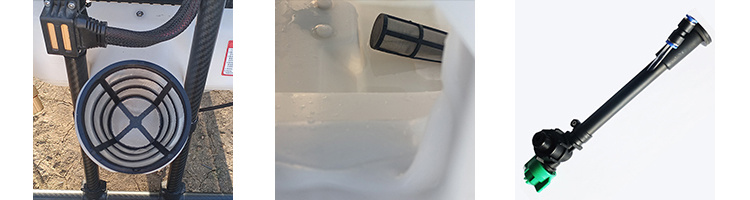

Nozzle high pressure fan nozzle*4 Obstacle avoidance detect range 2~12m

The HTU T10 is made of high quality aviation aluminum and carbon fiber, so if it encounters a tree accidentally, only the paddle will be damaged and the main body of the aircraft will not be affected. With modular design, the easy replacement of wear and tear parts is simple and can be repaired by users themselves in as little as 5 minutes, without delaying operations.HTU T10 has a stable operating performance, whether it is the smoothness of flight, fogging effect or the convenience of AB point or full autonomy have been recognized by customers.High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for SaleFeatures1. Terrain following radar is equipped to adjust the altitude of the drone to ensure flight safety and even spraying.2. Predict the breakpoint according to the route plan so that users can wisely arrange the timing for refill to improve battery efficiency .3. FPV (First-person view) enables user to see the environment in front of the drone in real time on the mobile phone.4. The app "Plant Protection Assistant" installed on the RC provides access to operation data. Useful functions include route planning, voice broadcast, field management, operation area statistics, etc.Modular DesignFoldable design for easy storage and transportation.Though and durable. Metal frame and carbon fiber boom. Durable folding mechanism.IP67 waterproof body. Shell can be washed with running water after operation.High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for Sale·Frame: Aviation aluminumHigh strength, light weight and corrosion resistance.·Machine arm: Carbon fibreHigh specific strength and high specific stiffness, lighter, increased effective load, extended flight distance and flight time.Easy to replace wearing parts.High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for Sale·Filter screen – Triple supportInlet port, Medicine box bottom, Nozzle.Spraying Systems and Operational EfficiencyHigh Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for SalePrecise and even spraying with high efficiency and good penetration·Double pumps are equipped. The max flow rate for 4 nozzles is 2.7L/min.Upgrade to 8 nozzles for a max flow rate of 3.6L/min and upgrade to 8 nozzles and 2 flow meters for a max flow rate of 4.5L/min.·High-pressure fan-shaped nozzles, providing fine atomization with a mean droplet diameter of 170 – 265μm.·Precise metering system to avoid insufficient spraying/overdose. Real-time display of remaining volume on the RC display.·Quadcopters have larger propellers creating stable downward wind, leading to better penetration of chemicals compared with hexacopters and Octocopters.High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for SaleHigh efficiency with best value·43 ha/day (8 hours),60-100 times higher efficiency than manual spraying.Multiple GuaranteesHigh Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for SaleHigh Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for SalePrecise Positioning : Safe Flight·It uses RTK Technology for positioning, supporting Beidou / GPS / GLONASS at the same time, and is equipped with dual anti-inference antenna to ensure centimeter-level accuracy.·The front and rear obstacle avoidance radars offers ±10cm accuracy, effectively avoiding obstacles such as utility poles and trees.·A magnetic compass is equipped to ensure the drone flies straight in the right direction even when RTK is unavailable.High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for Sale·Independent landing lights are provided for safe operation at night.Product OperationHigh Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for SaleEasy to Operate, Quick to Start·5.5 inch high brightness display for the RC ensurers clear outdoor image . Battery lasts for 6-8 hours.·Multiple operation modes: A-B point, manual and autonomous. Simple setup to quickly start operation.· Comprehensive training is offered to help users independently operate in 3 days and become skillful in 7 days.

Company Profile

High Tech 10 Liter Agriculture Drone Sprayer Reliablemultifunction Camera Autonomous Obstacle Avoidance Uav Smart Portable Agricultural Spraying Drone for Sale

FAQ

1.What is the best price for your product?We will quote based on the quantity of your order, the higher the quantity the higher the discount.2.What is the minimum order quantity?Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.3.How long is the delivery time of the products?According to the production order dispatch situation, generally 7-20 days.4.What is your payment method?Wire transfer, 50% deposit before production, 50% balance before delivery.5.What is your warranty time? What is the warranty?General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
