Low Consumption 10L Rtk Payload Disinfection Intelligent Spraying Drone for Pesticides Crop Spraying

Short Description:

After-sales Service:	Yes
Warranty:	1 Year.Core Components: 3 Months
Installation:	Module
Liquid Contained:	Medicine, Disinfector
Spraying Shape:	Sector
Volume:	10L

Customization:	Available \| Customized Request

Send email to us

Product Detail

Product Tags

Basic Info.

Model NO.

HTU T10

Power Supply

Electric

Material

Frame: Aviation Aluminum

Transport Package

783mm*783mm*670mm

Specification

1152*1152*630mm

Trademark

HAOJING

Origin

Shanghai

Product Description

Product Parameters

Basic Parameters	HTU T10	Flight Parameters
Outline dimension	11521152630mm (Unfoldable)	Hovering time	>20min (No load)
	666.4666.4630mm (Foldable)		>10min (Full load)
Width of spray	3.0~5.5m	Operation height	1.5m~3.5m
Maximum flow	3.6L/min	Max. flight speed	10m/s (GPS mode)
Medicine box capacity	10L	Hovering accuracy	Horizontal/Vertical±10cm (RTK)
Operational efficiency	5.4ha/h	(GNSS signal good)	Vertical±0.1m (Radar)
Weight	12.25kg	Accurate altitude hold of radar	0.02m
Power battery	12S 14000mAh	Altitude hold range	1~10m
Nozzle	4 high pressure fan nozzle	Obstacle avoidance detect range	2~12m

HIGH COST PERFORMANCE – PLANT PROTECTION

SOLUTION

·Reliable ·Efficient ·Durable ·Easy-to-use

Low Consumption 10L Rtk Payload Disinfection Intelligent Spraying Drone for Pesticides Crop Spraying

Product Description

ReliableMultiple Guarantees

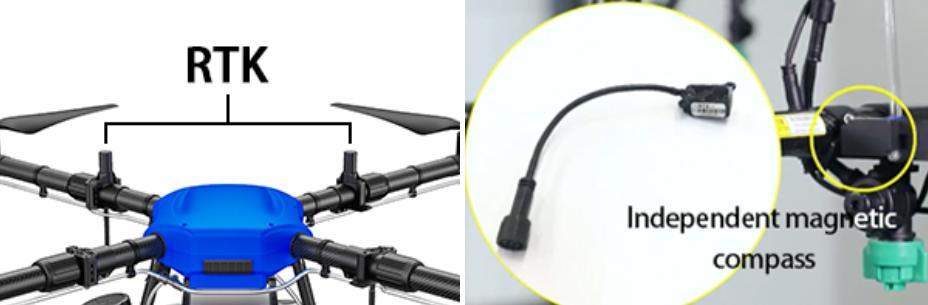

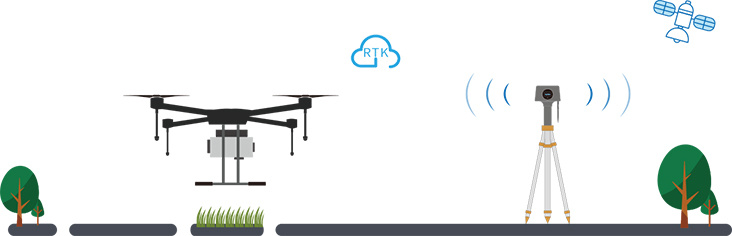

Dual antenna, RTK		Independent magnetic compass

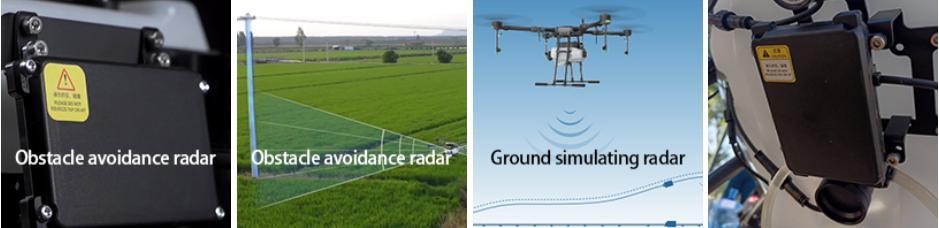

Front and rear obstacle avoidance radar		Ground simulating radar
The perception accuracy is ± 10cm, which can effectively avoid common obstacles such as electric poles and trees.		There are mountain and flat land.Detection range ± 45.

Efficient

Low Consumption 10L Rtk Payload Disinfection Intelligent Spraying Drone for Pesticides Crop Spraying

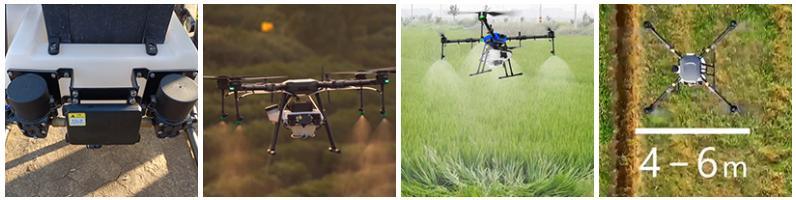

Drug saving, repeated spray prevention and leak proof spray

·Full range of dosage: the dosage is monitored through the liquid level sensor and can be displayed on the remote control screen ·Detection flow rate: through flowmeter·Dual water pump, spraying with speed:Fast speed: the faster the spraying is when the two pumps are fully opened Slow speed(<2m/s): Fly forward and spray with rear nozzleFly back and spray with the front nozzle·More uniform atomization:130μm-250μmFine spraying, suitable for agricultural operation·Large blades, strong downforce wind field and strong penetration Low Consumption 10L Rtk Payload Disinfection Intelligent Spraying Drone for Pesticides Crop Spraying

·43 ha/day, 60 times more artificial.	·0.7 ha/day.
·Safer without contact.	·Pesticide injury.
·Uniform spraying, provincial medicine.	·Re-spray, spray leakage.
·Disinfection in isolation area.	·Manual operation in isolation area is easy to be infected.

Durable

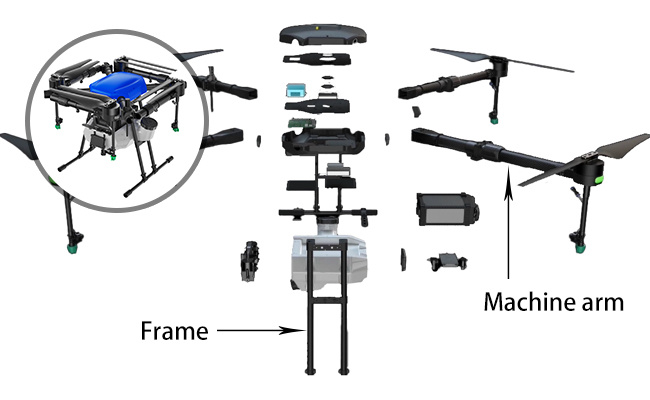

Modular Design-Easy to Replace Accessories-

·Frame: Aviation aluminum

High strength, light weight and corrosion resistance

·Machine arm: Carbon fibre

High specific strength and high specific stiffness, lighter, increased effective load, extended flight distance and flight time·Filter screen – Triple support1. Intake 2. Medicine box bottom 3. Nozzle

Easy-to-use Low Consumption 10L Rtk Payload Disinfection Intelligent Spraying Drone for Pesticides Crop Spraying

Company Profile

Why Choose Us

1> Our service network is sufficient to guarantee the needs of our customers, a perfect and continuous solution can guarantee the needs of most customers.

2> One-stop sourcing provides you with a perfect supply chain of plant protection products, saving your purchasing cost and time cost with high efficiency and quality. You can also enjoy our long-term technical consulting services.3> We support OEM/ODM service to meet your special needs.4> Price, information, quality, program, after-sales, a full range of standardized support services for our agents to win more opportunities and competitiveness, making cooperation so easy and efficient.5> Based on the absolute advantage of factory network, we have long-term cooperation with logistics, which can make the productsdelivered faster and more efficiently.6> We will provide the best after-sales service for our customers. You are welcome to visit our factory and receive after-sales service training. No matter what, we will try our best to meet your requirements.7> We can provide the certifications you need, or we can help you get through your official certifications.

Haojing International Trade Co., Ltd.

Haojing International Trade Co., Ltd. is a well-known manufacturer in China for many years. Our factory was established in 2003.

Our products include UAV, UGV,UAV parts, etc. Our products have passed ISO certification and CE certification and patent certificates.

Our company iscommitted to providing global customers with high-quality mechanical and electrical products and complete sets of solutions, andproviding one-stop procurement services.We conforms to market demand, takes technological innovation, customer first, and good quality as our concepts, based on ouractive actions and hard work, opened overseas markets successfully.At present, we have an extensive sales network with customers all over the world, including the United States, Mexico, Russia,Portugal, Turkey, Pakistan, South Korea, Japan and Indonesia. Our products have covered distributors and agents in all European countries.Our main manufacturing plant is located in Shanghai, China, with a stable and highly skilled labor force. We are willing to provide you with unique products that are not only attractive, but also practical and competitive.We know for a company to develop an enviable reputation,it needs to do much efforts so that favor to the needs of differentclients. We are in trying its best effort to play a pivotal role in this field. Waiting for more cooperation partners to join us.

Packaging & Shipping

Low Consumption 10L Rtk Payload Disinfection Intelligent Spraying Drone for Pesticides Crop Spraying

FAQ

1. Who are we? We are an integrated factory and trading company, with our own factory production and 65 CNC machining centers. Our customers are all over the world, and we have expanded many categories according to their needs. 2. How can we guarantee quality? We have a special quality inspection department before we leave the factory, and of course it is very important that we will strictly control the quality of each production process throughout the whole production process, so our products can reach a 99.5% pass rate. 3. What can you buy from us? Professionaldrones, unmanned vehiclesand other devices with high quality. 4. Why should you buy from us not from other suppliers? We have 19 years of production, R&D and sales experience, andwe have a professional after sales team to support you. 5. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card;
