Reliable Supplier Surveying Drones For Sale - T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying – Hongfei Detail:

Product Description

Product Description

Diagonal wheelbase 1500mm
Size Folded: 750mm*750mm*570mm
Spreaded: 1500mm*1500mm*570mm
Operation power 44.4V (12S)
Weight 10KG
Payload 10KG
Flight speed 3-8m/s
Spray width 3-5m
Max. takeoff weight 26KG
Flight control system Microtek V7-AG
Dynamic system Hobbywing X8
Spraying system Pressure spray
Water pump pressure 0.8mPa
Spraying flow 1.5-4L/min (Max: 4L/min)
Flight time Empty tank: 20-25min Min full tank: 7-10min
Operational 6-12ha/hour
Daily efficiency(6hours) 20-40ha
Packing box Flight case 75cm*75cm*75cm

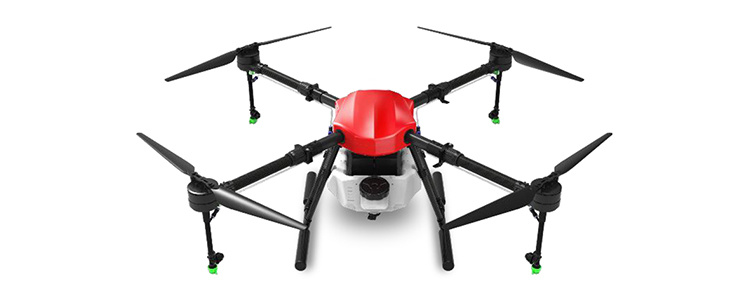

HGS T10 is a small capacity agricultural drone, fully automatic operation, can spray 6-12 hectares of fields per hour, greatly improving work efficiency.This machine uses intelligent battery, fast charging, easy operation, suitable for novice. Compared with other suppliers’ prices, we are more affordable.Application scenario: It is suitable for pesticide spraying of various crops such as rice, wheat, corn, cotton and fruit forests.T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural SprayingFeatures

·Support one-click take-off

Use simple/PC ground station, the whole process of voice broadcast, landing, without manual intervention, improve stability.

·Break point record renewal spray

When the amount of medicine is detected to be insufficient, or when the power is insufficient to return to the flight, it can be set to automatically record the break point to return to the flight.

·Microwave altitude radar

Fixed height stability, support for ground-like flight, log storage function, landing on the lock function, no-fly zone function.

·Dual pump mode

Vibration protection, drug break protection, motor sequence detection function, direction detection function.





Protection Grade

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural SprayingProtection class IP67, waterproof and dustproof, support full body wash.





Accurate Obstacle Avoidance

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural SprayingFront and rear dual FPV cameras, spherical omnidirectional obstacle avoidance radar to provide security escort, real-time perception of three-dimensional environment, omnidirectional obstacle avoidance.





Product Detail

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying
·High performance and big pull ·High precision dual GPS ·Folding arm ·Dual pumps
Exclusive brushless motors for plant protection drones, waterproof, dustproof and corrosion-proof, with good heat dissipation. Centimeter-level positioning, multiple protection accurate positioning, full load full speed flight without dropping high. Rotating buckle design, reduce the overall vibration of the aircraft, improve flight stability. Can be adjusted according to the need to adjust the flow rate.





Fast Charging

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural SprayingInverter charging station, generator and charger in one, 30 minutes fast charging.

Battery weight 5KG
Battery specification 12S 16000mah
Charging Time 0.5-1 hour
Recharge Cycles 300-500 times





Standard Configuration

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying





Optional Configuration

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying

Company Profile

T10 Quad-Axis 10L Agricultural Spraying Drone Frame Kit 10kg Brushless Spraying System Drone for Agricultural Spraying

FAQ

1.What is the best price for your product?

We will quote based on the quantity of your order, the higher the quantity the higher the discount.



2.What is the minimum order quantity?

Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.



3.How long is the delivery time of the products?

According to the production order dispatch situation, generally 7-20 days.



4.What is your payment method?

Wire transfer, 50% deposit before production, 50% balance before delivery.



5.What is your warranty time? What is the warranty?

General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
